RClamp0522P
RailClamps are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features
- ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air) ±8kV (contact), IEC 61000-4-5 (Lightning) 5A (8/20μs), IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design

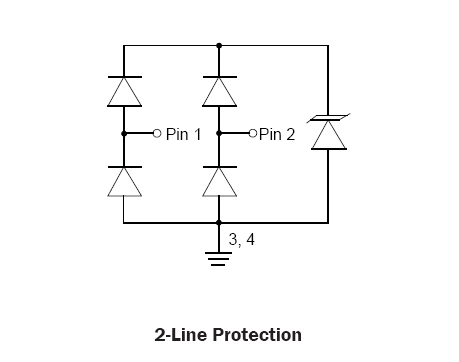

- Protects two or four I/O lines
- Low capacitance: 0.3pF typical (I/O to I/O)
- Low clamping voltage
- Low operating voltage: 5V
- Solid-state silicon-avalanche technology
- Lead-Free, RoHS and WEEE Compliant
- High Definition Multi-Media Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- DisplayPort™ Interface
- MDDI Ports
- PCI Express
- eSATA Interfaces
Applications
Packaging
- SLP1610P4
- 3000 pcs.Tape & Reel
Order Codes
- RClamp0522P.TCT
Pb(Lead)-Free/RoHS-Green Info
