Overview

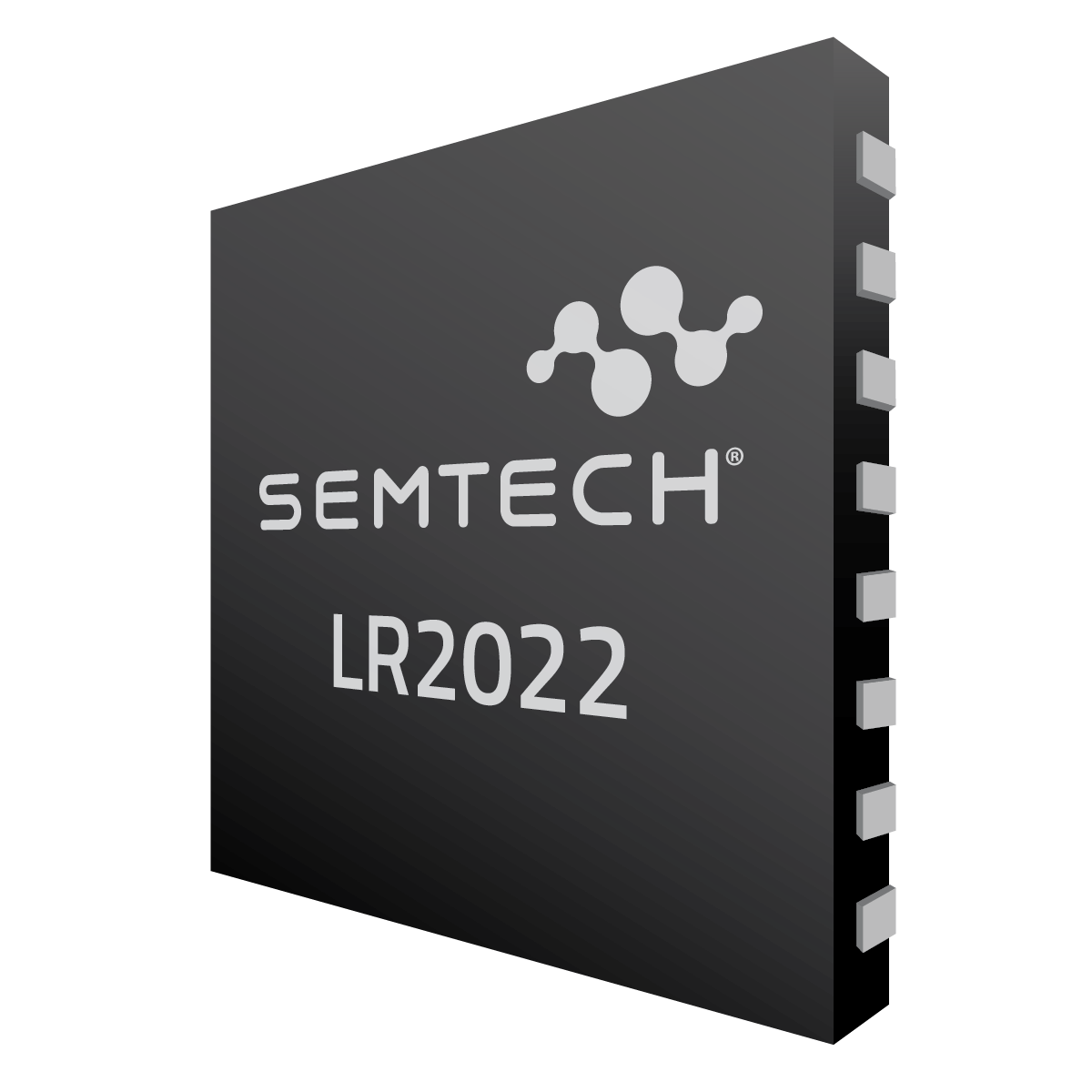

Using fourth-generation LoRa® IP supporting both terrestrial and SATCOM networks in the sub-GHz, 2.4 GHz ISM bands and licensed S-band. The transceiver is designed to be backward compatible with previous LoRa devices, ensuring seamless LoRaWAN® compatibility. This device is a sub-set of the LR2021, focusing on LoRa and Bluetooth LE Physical Layers, as well as FSK-based legacy protocols with third-party stack offerings. The LR2022 features an advanced RF and analog architecture that supports a multi-region, single-SKU design, reducing external BOM costs, PCB footprint, and power consumption, while offering superior performance compared to previous LoRa transceivers.
Features
Key features of the LoRa Plus™ LR2022 include:
- Terrestrial sub-GHz, 2.4 GHz ISM bands and NTN (L and S) bands
- Multi-PHY compatibility enables LP wireless protocols with third-party stacks
- LoRa up to 125 kbps, FSK, OOK and LR-FHSS modulations
- Multi-region operation with single switch-less front-end design
- +22 dBm to -10 dBm Transmitter in SubGHz and +12dBm to -15dBm in the 2.4GHz band, offering best-in-class energy efficiency
- Multi-SF Receiver with low noise figure, Improved CAD and best LoRa sensitivity down to -141.5 dBm @ SF12/125 kHz
- Increased frequency offset tolerance obviating TCXO and large thermal relief
BUY NOW
Part Number
QTY
Unit Price (USD)
Price
$ 0
$ 0
Ordering functionality and fulfillment provided by Digi-Key Corporation. See terms here.
| Documents | Release Date | Type | |
|---|---|---|---|
| LR2021/22 Datasheet v2.1 | 2026-04-16 | ||
| AN1200.102 - LR2021/22 LoRa Improvements Application Note | 2025-12-18 | ||
| AN1200.103 - LR2021/22 CPFSK Modem Improvements v1.0 | 2025-10-23 | ||
| AN1200.104 - LR2021/22 Modem Interface v1.0 | 2025-10-31 | ||
| AN1200.106 - LR2021/22 Xtal Temperature drift Mitigation v1.0 | 2025-10-25 | ||
| AN1200.107 - LR2021/22 Analog Improvements Application Note | 2025-12-18 | ||
| AN1200.110 - LR2021/22 Evaluation Guide v1.0 | 2025-10-28 | ||
| AN1200.114 - LR2021/22 Ranging Demo v1.0 | 2025-10-23 | ||
| AN1200.59 - Selecting the Optimal Reference Clock v1.7 | 2025-09-15 | ||
| LR202x 490MHz & 2.4GHz Reference Design Files for CN490 region | 2026-03-30 | ZIP | |
| LR202x 868MHz & 2.4GHz Reference Design Files for EU868 region | 2026-03-30 | ZIP | |
| LR202x 915MHz & 2.4GHz Reference Design Files for US915 region | 2026-03-30 | ZIP | |
| Documents | Release Date | Type | |
|---|---|---|---|
| LoRa Studio - PC based evaluation tool | 2025-10-23 | TXT | |
| LoRa Studio Windows Installation file | 2026-04-17 | TXT | |
