Overview
The Evaluation kit incorporates 2 x LoRa Plus™ LR2021RF2XDS1 RF boards & Xiao nRF54L15 modules and accessories, configured for Europe EU868 and global 2.4GHz Industrial, Scientific and Medical (ISM) bands.
Features
Based on LR2021
- PCB Layers: 4
- 32MHz Reference Clock: XTAL
- Region: Europe and India
- Frequency Bands: Terrestrial and NTN, 868 MHz, 2.4 GHz ISM bands and licensed L/S-band radio
- Tx Out Power: 22 dBm to -10dBm (SubGHz) and 12dBm (2.4 GHz)
- RF Matching: Switchless Design

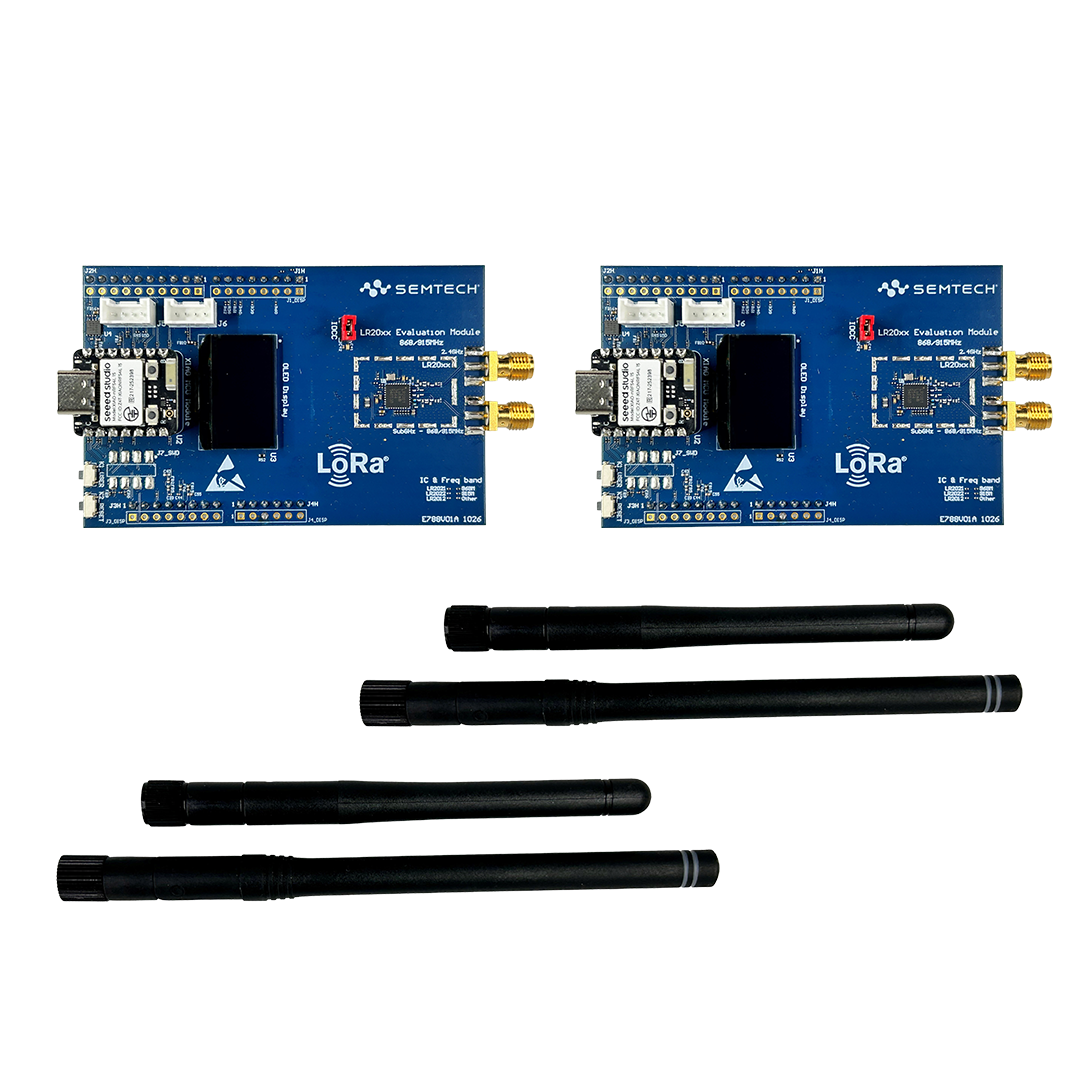

Evaluation Kit Content:
- 2x LR2021RF2XDS1 868 / 915 MHz RF boards : Highly integrated LR2021 radio board Feature-rich carrier boards with display and connectivity
- 2x XIAO nRF54L15 modules (Xiao-NRF54 PCB): Nordic Semiconductor nRF54L15-based processing units
- 2x 2.4GHz antennas with SMA connection
- 2x 868 MHz antennas with SMA connection
- USB cables: For programming and power
- Documentation: Quick-start guide and assembly instructions
| Documents | Release Date | Type |  |
|---|---|---|---|
| Production folder file for LR2021EVK2XBS1 868MHz & 2.4GHz in EU868 region | 2026-05-01 | ZIP | |
| Documents | Release Date | Type | |
|---|---|---|---|
| LoRa Studio - user guide | 2025-10-23 | TXT | |
| LoRa Studio Windows Installation file | 2026-04-17 | TXT | |
Click diagram to enlarge
