Overview

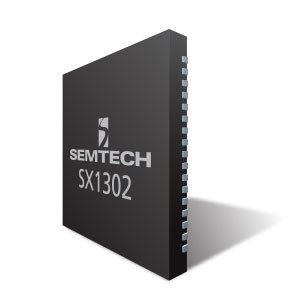

The SX1302 is a new generation of baseband LoRa® chip for gateways. It excels in reducing current consumption, simplifies the thermal design of gateways, and reduces the bill Of materials costs, yet it is capable of handling a higher amount of traffic than preceding devices.
Features
- Up to -141dBm sensitivity with SX1250 Tx/Rx front-end (see reference design)
- 125kHz LoRa reception with:
- 8 x 8 channels LoRa® packet detectors
- 8 x SF5-SF12 LoRa® demodulators
- 8 x SF5-SF10 LoRa® demodulators
- 125 /250 / 500kHz LoRa® demodulator
- (G)FSK demodulator
- Direct interface to Semtech transceivers SX1250, SX1255, SX1257 and SX1258
- Single 32MHz clock
| Documents | Release Date | Type |  |
|---|---|---|---|
| SX1302 Data sheet | 2020-10-26 | | |
| 5 Things You Need to Know About LoRaWAN®-Based Gateways | 2024-06-06 | | |
| AN1200.59: Selecting the Optimal Reference Clock | 2023-08-24 | | |
| AN1200.80: LoRa® Modem Doppler Immunity | 2023-10-26 | | |
| USB Corecell ref design for LBT Spectral Scan gateway User Guide | 2024-06-10 | | |
