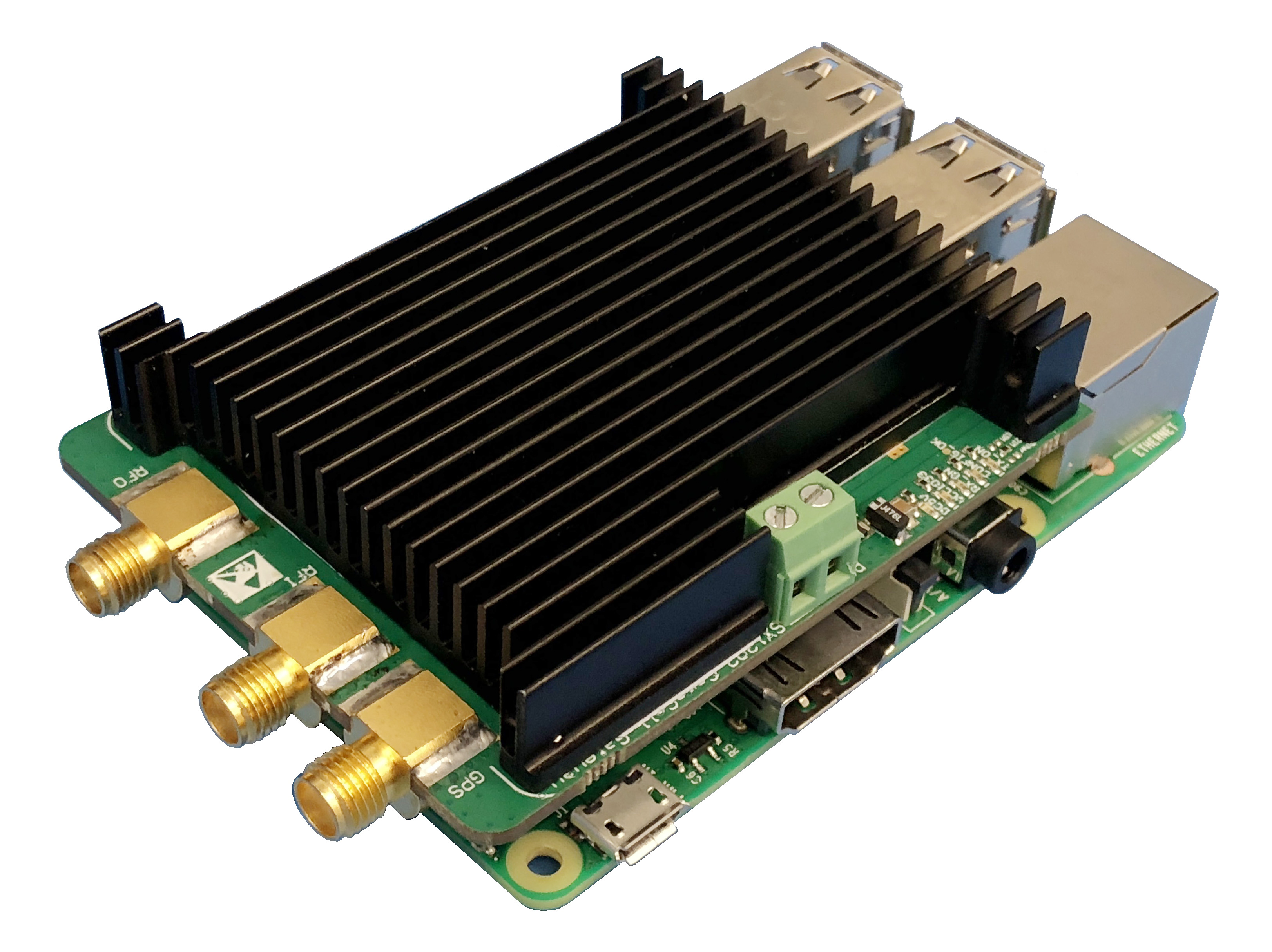

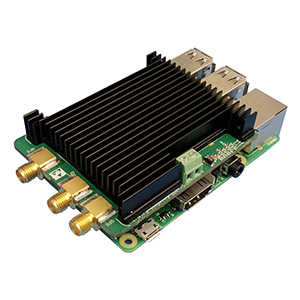

The LoRa® Corecell Reference Design for full duplex gateway applications is a complete indoor and outdoor reference design developed for U.S. ISM band. The reference design is based on the LoRa Core™ products, SX1302 and SX1257.
No evaluation kit available for purchase
Available reference design file package
- Full duplex mode
- 10x power reduction compared to legacy products
- Transmit power (U.S. 915MHz) up to +27dBm
- Receive sensitivity (U.S. 915MHz) down to:
- -140.8dBm at SF12, 125kHz bandwidth
- -124.2dBm at SF7, 125kHz bandwidth
- -118.9dBm at SF5, 125kHz bandwidth
- 8 frequency channels
- 16 125kHz bandwidth LoRa demodulators
- 1 high speed 125/250/500kHz multi-bandwidth LoRa demodulator
- (G)FSK demodulator
- Home automation
- Building automation
- Factory automation
