EZ1587C
Product inactive. Information on this page is for reference only.
Features
- Low dropout voltage: 1.3V max.
- Full current rating over line and temperature
- Fast transient response
- ±2% total output regulation over line, load and temperature
- Adjust pin current max 90μA over temperature

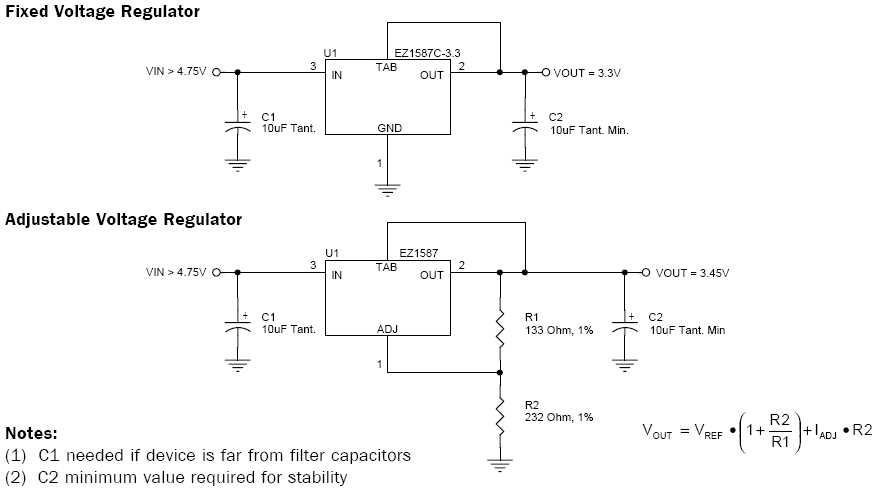

- Fixed/adjustable output voltage
- Line regulation typically 0.015%
- Load regulation typically 0.05%
- Industrial temperature range (EZ1587I)
- TO-220 and TO-263 packages. Available in RoHS compliant package
- Printer and plotter supplies
- Instrumentation
- Medical equipment
- Microcontroller systems
- Telecommunication systems
- Motherboards
- Switching supply post regulation
Applications
Packaging
- TO-263, TO-220
Order Codes
- EZ1587CM-1.5 TR: Package Minimum Tape & Reel Only (TO-263)
- EZ1587CM-2.5 TR: Package Minimum Tape & Reel Only (TO-263)
- EZ1587CM-2.5TRT: RoHS Compliant, Package Minimum Tape & Reel Only (TO-263)
- EZ1587CM-3.3 TR: Package Minimum Tape & Reel Only (TO-263)
- EZ1587CM-3.3TRT: RoHS Compliant, Package Minimum Tape & Reel Only (TO-263)
- EZ1587CM.TR: Package Minimum Tape & Reel Only (TO-263)
- EZ1587CT: 50 pcs. Tube Packaging (TO-220)
- EZ1587CT-1.5: 50 pcs. Tube Packaging (TO-220)
- EZ1587CT-2.5: 50 pcs. Tube Packaging (TO-220)
- EZ1587CT-2.5T: RoHS Compliant, 50 pcs. Tube Packaging (TO-220)
- EZ1587CT-3.3: 50 pcs. Tube Packaging (TO-220)
- EZ1587CT-3.3T: RoHS Compliant, 50 pcs. Tube Packaging (TO-220)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
EZ1587CM
Part Description
4.6 AMP POSITIVE VOLTAGE REGULATOR
# of leads
3
Package Type
TO-263
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Please consult with your Semtech Sales Rep
