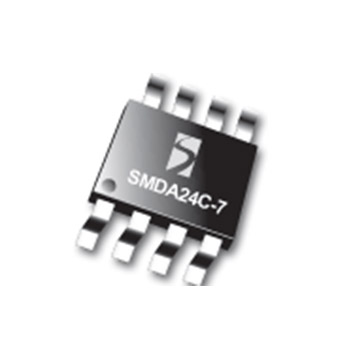

Semtech SMDA24C-7
24 V 7-Line Bidirectional TVS Array
The SMDAxxC-7 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Overview
Features
- Protects 7 I/O lines
- Working voltage: 24 V
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- Low leakage current
- Low operating voltage
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Small SO-8 surface-mount package
Applications
- RS-232 data lines
- RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- Peripherals
- Set-top boxes
- Serial and parallel ports
Packaging
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- RS-232 data lines
- RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- Peripherals
- Set-top boxes
- Serial and parallel ports
Packaging
SO-8
Order Codes
- SMDA24C-7.T: Lead-free, RoHS and WEEE compliant, 95 pcs. Tube
- SMDA24C-7.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
