Semtech LCDA12C-8
12 V Low-Capacitance, 8-Line TVS Array
The LCDAxxC-8 has been specifically designed to protect sensitive components which are connected to data and transmission lines from over voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Overview
Features
- 12 V 15 V operating voltage
- Protects eight I/O lines
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
- Low capacitance for high-speed interfaces
- High surge capability
- Low clamping voltage
- Solid-state silicon-avalanche technology
Applications
- Multi-mode transceiver protection
- WAN equipment:
- CSU/DSU
- Multiplexers
- Routers
- ISP equipment
- Customer premise equipment
Protection for any of the following interfaces:
- RS-232 (V.28)
- RS-422 (V.11, X.21)
- RS-449 (V.11/V.10)
Packaging
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
- Multi-mode transceiver protection
- WAN equipment:
- CSU/DSU
- Multiplexers
- Routers
- ISP equipment
- Customer premise equipment
Protection for any of the following interfaces:
- RS-232 (V.28)
- RS-422 (V.11, X.21)
- RS-449 (V.11/V.10)
Packaging

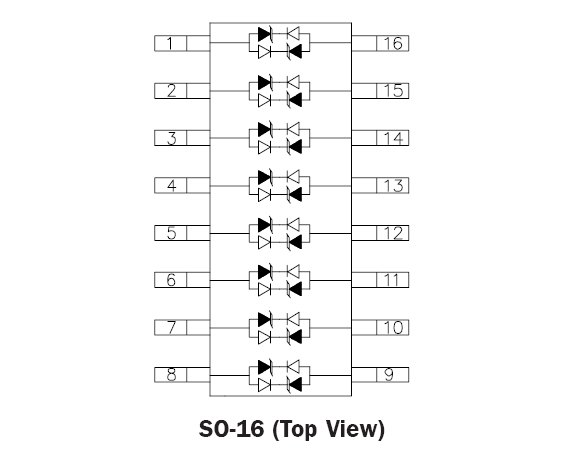

SO-16
Order Codes
- LCDA12C-8.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
Diagrams and Specs

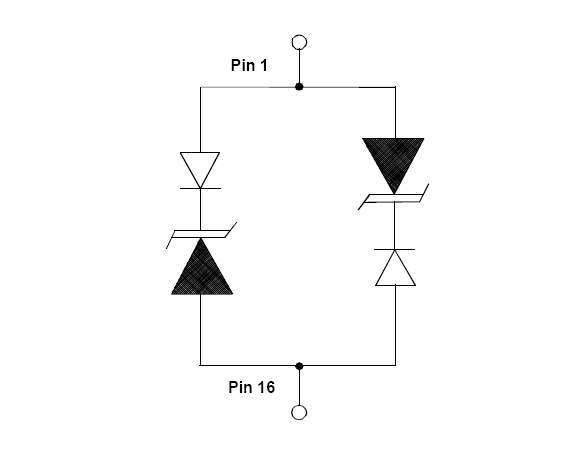

Block Diagram
Click diagram to enlarge
