The LCDAxxC-1 is a low capacitance transient voltage suppressor (TVS) diode array. It is designed to protect sensitive CMOS ICs from the damaging effects of ESD and lightning.
- 12 V operating voltage

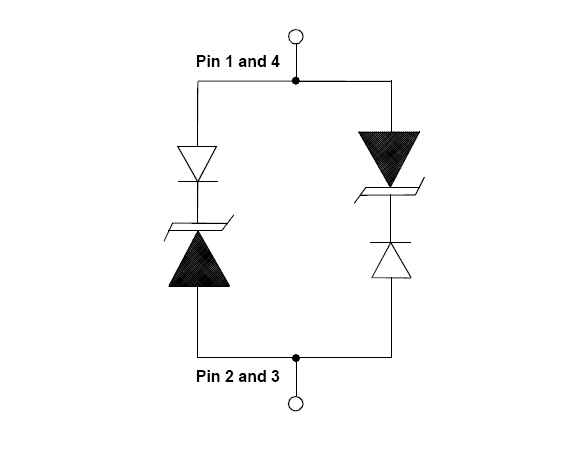

- Protects one line pair
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)

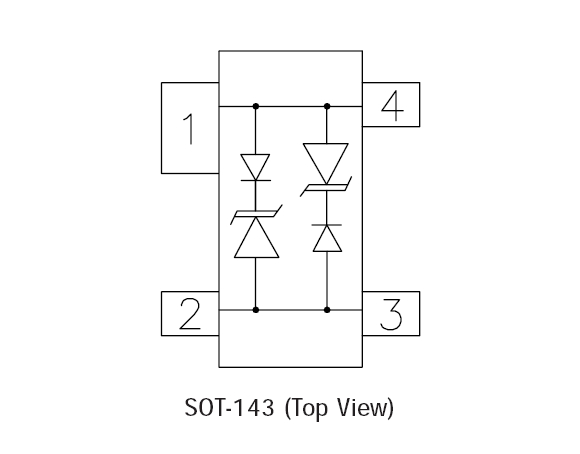

- Configuration optimized for easy board layout
- Low capacitance (< 15 pF) for high-speed interfaces
- Low clamping voltage
- Low leakage current
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- ADSL interfaces
- RS-232, RS-422, V.90 interfaces
- Multi-protocol serial transceivers
- High-speed data lines
- Portable electronics
- WAN/LAN equipment
- Wireless systems
- 3000 pcs. Tape & Reel
