Overview
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace 0201 size multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Packaging

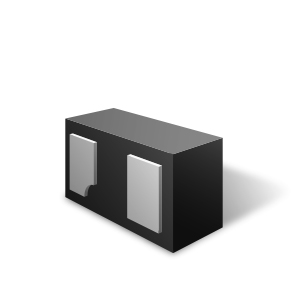

- SLP0603P2X3A
Order Codes
- uClamp3311Z.TFT - 15,000, 7 in. Pb-Free, Halogen Free, RoHS/WEEE Compliant
PB Free/ROHS
Learn More →Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)
- Ultra-small 0201 package
- Protects one data line
- Low leakage current: <10nA typical (VR=2.5V)
- Working voltage: 3.3V
- Low capacitance: 10pF maximum
- Solid-state silicon-avalanche technology
Documents | Release Date | Type | |
---|---|---|---|
UCLAMP3311Z Datasheet | 2018-12-15 |
Applications
- Cellular Handsets & Accessories
- Portable Instrumentation
- Keypads, Side Keys, LCD Displays
- Notebooks & Desktop Computers
- MP3 Players
