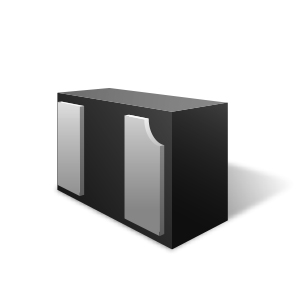

uClamp2511T
The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones,notebook computers, and PDAs.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

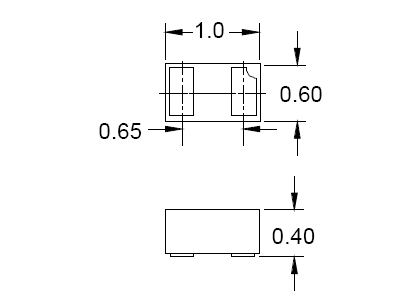

- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line
- Low reverse current: 10nA typical (VR=2.5V)
- Working voltage: 2.5V
- Low leakage current
- Solid-state silicon-avalanche technology
Applications
Order Codes
- uClamp2511T.TCT: Pb-free, Halogen free, RoHS and WEEE Compliant, 3000 pcs Tape and Reel
