μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. They also offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- High ESD withstand voltage: ±22kV (contact) and ±30kV (air) per IEC 61000-4-2
- High lightning surge capability: ±3A (tp=8/20μs) per IEC 61000-4-5
- Ultra small 0201 package
- Protects one data or power line
- Low ESD clamping voltage
- Working voltage: ±20V
- Low maximum leakage current: 10nA
- Solid-state silicon-avalanche technology
- Pb-free, halogen-free, RoHS/WEEE-compliant
- Cellular handsets & accessories
- Notebook computers
- Portable instrumentation

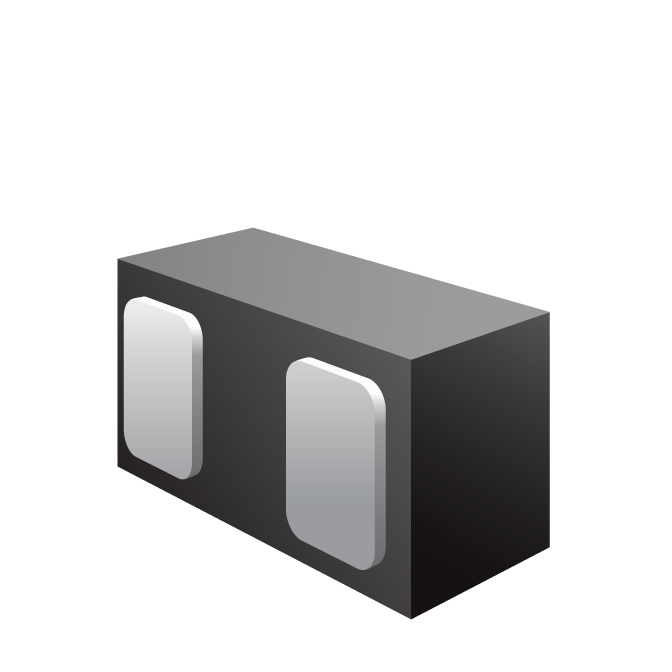

- DFN 0.60 x 0.30 x 0.25mm-2 lead - 15,000 pcs
