- Protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 12A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects four I/O lines
- Low capacitance: 3pF typical
- Low clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- USB 2.0 Power and Data Line Protection
- Video Graphics Cards
- Monitors and Flat Panel Displays
- Digital Visual Interface (DVI)
- 10/100 Ethernet
- Notebook Computers
- SIM Ports
- IEEE 1394 Firewire Ports

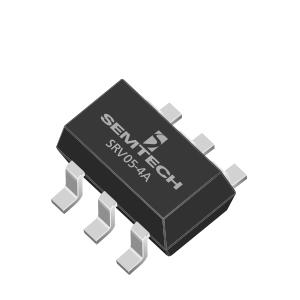

- SOT-23 6 Lead
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
