Semtech SRDA3.3-4
RailClamp® Low-Capacitance TVS Diode Array
RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SR series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Overview
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)
- Array of surge-rated diodes with internal TVS Diode
- Protects 4 I/O lines and power supply line
- Low capacitance (<15 pF) for high-speed interfaces
- Low operating and clamping voltages
- Solid-state technology
Applications
- T1/E1 secondary IC Side Protection
- T3/E3 secondary IC Side Protection
- Analog Video Protection
- Microcontroller Input Protection
- Base stations
- I²C Bus Protection
Packaging
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)
- T1/E1 secondary IC Side Protection
- T3/E3 secondary IC Side Protection
- Analog Video Protection
- Microcontroller Input Protection
- Base stations
- I²C Bus Protection
Packaging

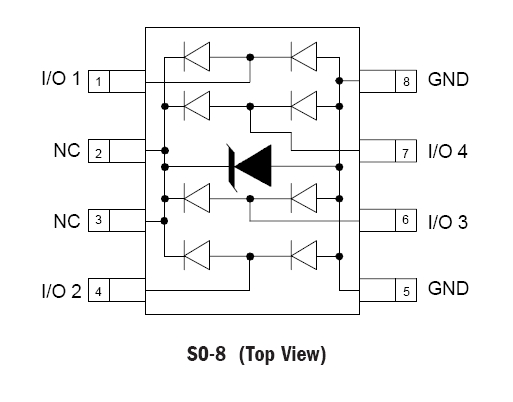

SOIC-8
Order Codes
- SRDA3.3-4.T: Lead-free, RoHS and WEEE compliant, 95 pcs. Tube
- SRDA3.3-4.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
Diagrams and Specs

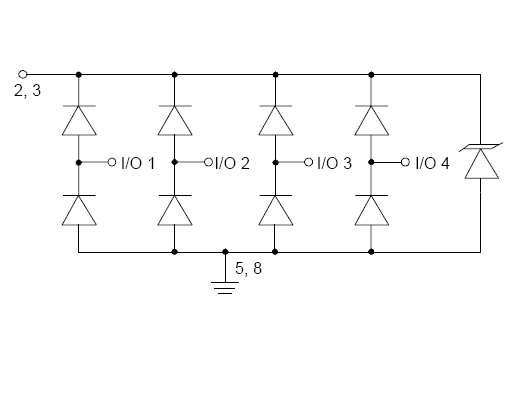

Block Diagram
Click diagram to enlarge
