Overview

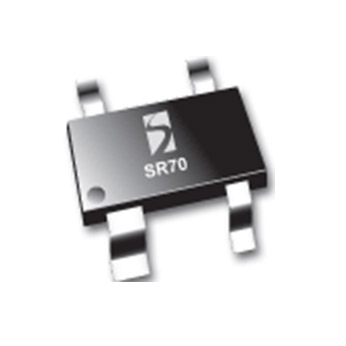

RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SR70 has been specifically designed to protect sensitive components which are connected to data and transmission lines from over-voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 1 kV, 24 A (8/20 µs)

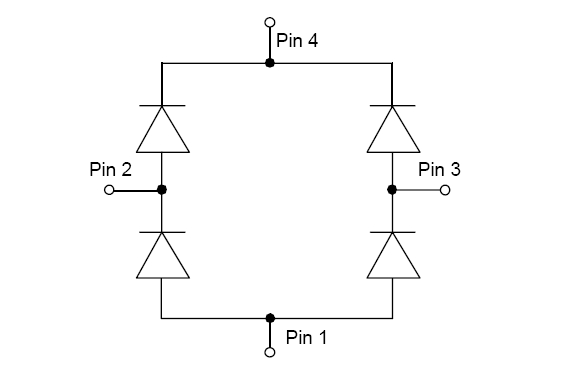

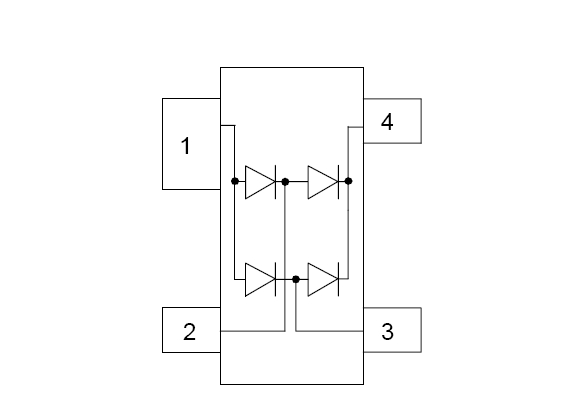

- Array of surge-rated, low-capacitance diodes
- Protects two I/O lines
- Low capacitance (5 pF typical) for high-speed interfaces
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
| Documents | Release Date | Type |  |
|---|---|---|---|
| SR70 Datasheet | 2018-12-15 | | |
Applications
- ADSL lines
- I2C bus protection
- Video line protection
- T1/E1 secondary IC side protection
- Portable electronics
- Microcontroller input protection
- WAN/LAN equipment
- ISDN S/T interface
