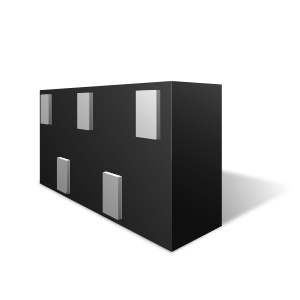

RClamp®7534P is a high performance TVS array aimed at simultaneously protecting 4 signal lines from overvoltage events caused by ESD, CDE (Cable Discharge Events) and EFT (electrical fast transients). RClamp7534P features an extremely low max capacitance of 0.19pF (Typical) and is designed to protect high speed interfaces such as HDMI 2.0, 10-gigabit Ethernet,and USB 3.0.
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±25kV (air), ±20kV (contact)
- IEC 61000-4-5 (Lightning) 4A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Protects four high-speed lines
- Low capacitance: 0.19pF Typical (I/O to Ground)
- Low ESD clamping voltage
- Low dynamic resistance: 1.0 Ohm (Typ)
- Low leakage current
- Solid-state silicon-avalanche technology
- HDMI 2.0
- USB 3.1
- Display Port 1.2
- RClamp7534P.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant. 10,000 pcs. Tape & Reel.
