Overview

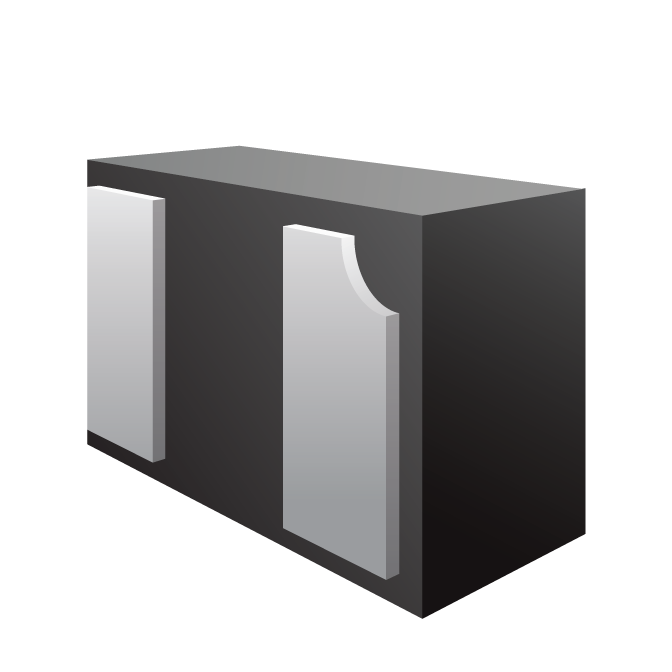

RClamp®3631P is a bidirectional transient voltage suppressor (TVS) specifically designed to provide secondary surge and electrostatic discharge (ESD) protection for high speed data lines. RClamp3631P utilizes deep snap-back to minimize device clamping voltage. The device features high surge capability of 10A (tp = 8/20μs) and ESD characteristics highlighted by high ESD withstand voltage (+/-30kV per IEC 61000-4-2) and extremely low dynamic resistance (0.23Ω typical). Each device will protect up to two high speed data lines operating at ±3.63V.
Features
- Transient protection to:
- IEC 61000-4-2 (ESD): ±30kV (contact), ±30kV (air)
- IEC 61000-4-5 (lighting): 10A (8/20μS)
- Working voltage: ±3.63V
- Protects one line or one line pair
- Dynamic resistance: 0.23Ohms (Typ)
- Low reverse leakage current: 50nA max
- Ultra-low capacitance: 0.35pF maximum
- Solid-state silicon-avalanche technology
| Documents | Release Date | Type |  |
|---|---|---|---|
| RCLAMP3631P Datasheet | 2023-08-22 | | |
Applications
- USB 2.0
- Industrial equipment
- Antenna
- 2.5G/5GbE
Inventory
| Product | Country | Distributor | Qty | Buy |
|---|
