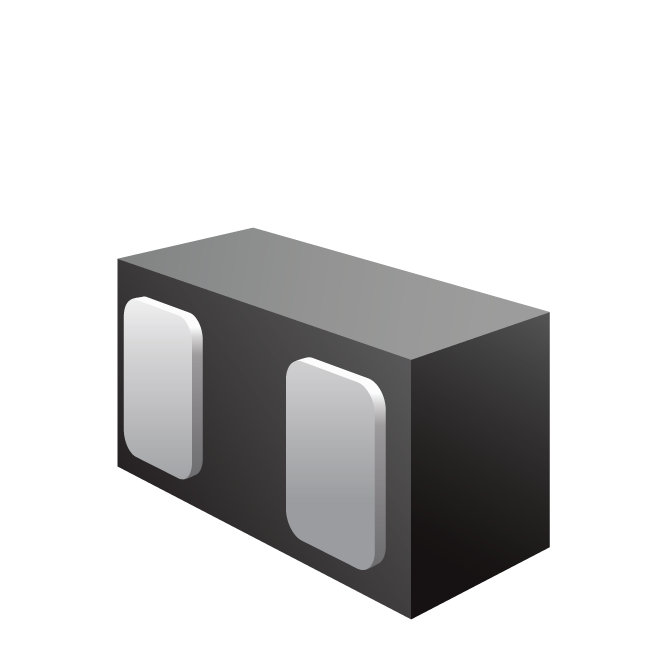

RClamp®3371ZC is an ultra low capacitance “FemtoClampTM” ESD protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- ESD and EOS Protection
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±17kV (air), ±10kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Ultra-low capacitance: 0.25pF Maximum
- Small package (0201) saves board space
- Protects one high-speed data line
- Working voltage: 3.3V
- No insertion loss to 2.0GHz
- Low reverse leakage current: 50nA max at VR=3.3V
- Large operating bandwidth: 13.5GHz
- USB 3.1, USB 3.0
- HDMI 1.4, HDMI 2.0
- USB Type-C
- 0201 (0.6 x 0.3 x 0.25mm)
