RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from
overvoltage caused by ESD (electrostatic discharge), CDE (cable discharge events), and EFT (electrical fast transients).
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 30kV (air), 30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Protects up to four I/O lines
- Low capacitance (<5pF) for high-speed interfaces
- Low Dynamic Resistance: 0.25 Ohms
- Low operating voltage: 3.3V
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet
- Central Offi ce Equipment
- LVDS Interfaces
- MagJacks / Integrated Magnetics
- Notebooks / Desktops / Servers

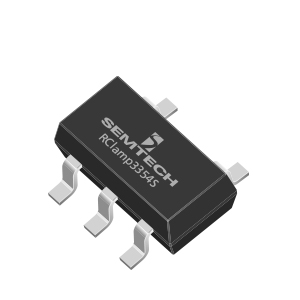

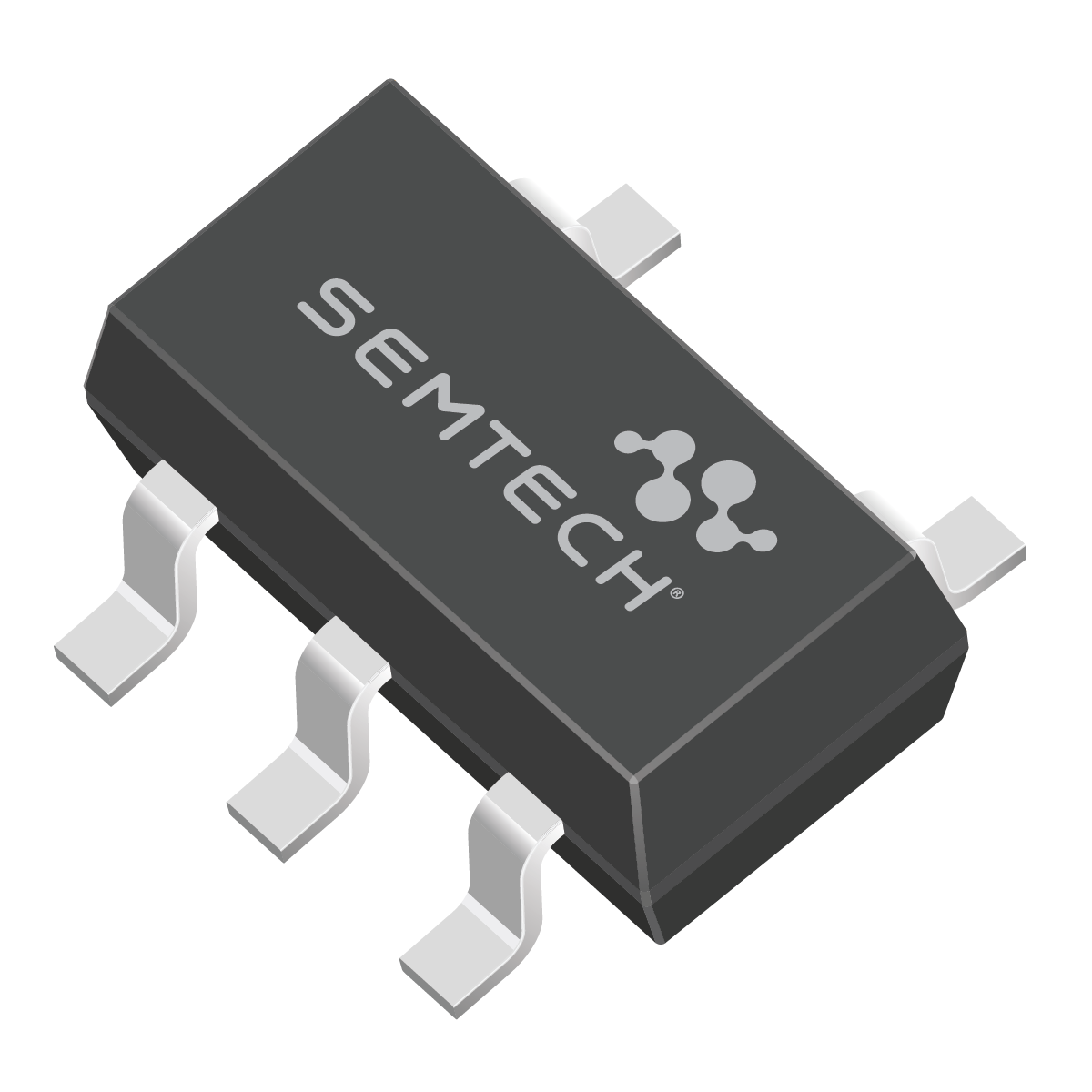

- JEDEC SOT-23 5L
- RClamp3354S.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
