- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20µs)

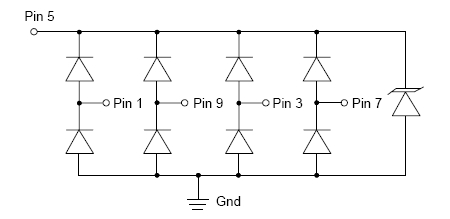

- Array of surge rated diodes with internal TVS diodes

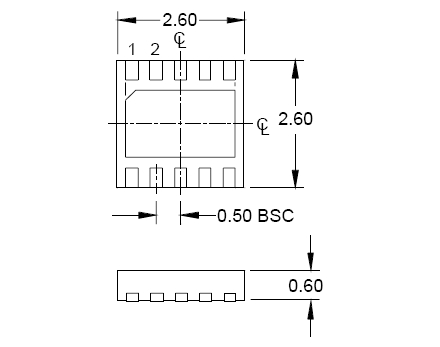

- Small package saves board space
- Protects up to four I/O lines and power line
- Low capacitance (<5pF) for high speed interfaces
- Low leakage current and clamping voltage
- Low operating voltage: 2.5V and 3.3V
- Solid-state silicon-avalanche technology
- USB 2.0
- 10/100/1000 Ethernet
- Digital Visual Interface (DVI)
- T1/E1 Secondary Protection
- T3/E3 Secondary Protection
- Analog Video

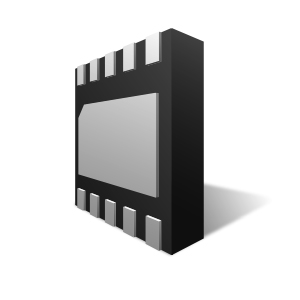

- RClamp3304N.TCT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs.Tape & Reel
