RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE
(cable discharge events), and EFT (electrical fast transients).
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 40A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects two line pairs
- Low capacitance for high-speed interfaces
- Low variation in capacitance vs. bias voltage
- Low clamping voltage
- Low operating voltage: 2.5V
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet
- Central Office Equipment
- LVDS Interfaces
- MagJacks / Integrated Magnetics
- Notebooks / Desktops / Servers

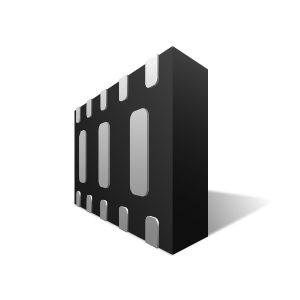

- 10-pin SLP3020N10
- RClamp2574N.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
