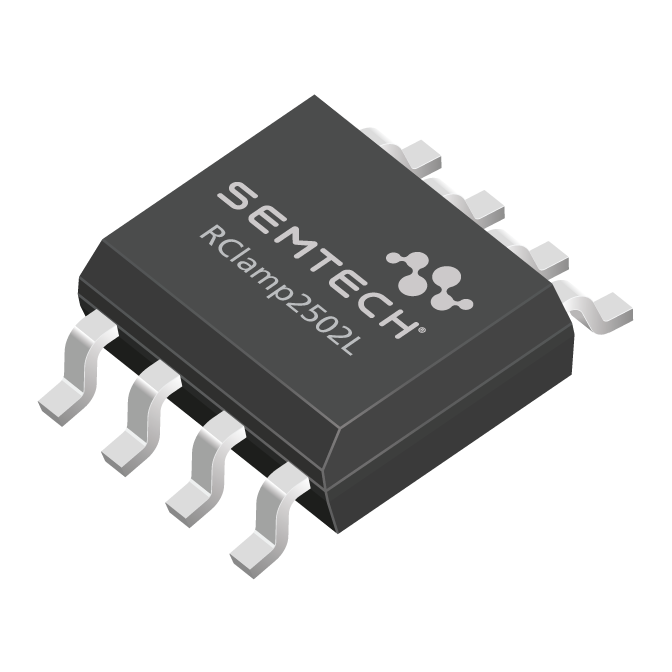

RClamp2502L
The RailClamp2502L is a low capacitance TVS array designed to protect data interfaces from electrostatic discharge (ESD), cable discharge events (CDE), electrical fast transients (EFT) and lightning surge. The combination of low clamping voltage, high surge capability and low loading capacitance makes the RClamp2502L an ideal solution for protecting Ethernet-based systems.
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 24A (1.2/50μs)
- Array of surge rated diodes with internal TVS Diode
- Protects up to two I/O lines
- Low capacitance (<5pF (Line-to-Line))
- High surge capability: 40A (tp=8/20μ)
- Low operating voltage: 2.5V
- Easy layout
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet Interfaces
- CPE Equipment
- GPON Systems
- VoIP Phones
- Video Surveillance Systems
Applications
Packaging
- SO-8
- 500 pcs. Tape & Reel
Order Codes
- RClamp2502L.TBT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP2502L
Part Description
RAILCLAMP 2.5V TVS FOR Gibe APPLICATIONS
# of leads
5
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
