Overview
RailClamp® TVS diodes are ultra low capacitance devices designed to protect sensitive electronics from damage or latch-up due to ESD, EFT, and EOS. They are designed for use on high speed ports in applications such as cell phones, notebook computers, and other portable electronics. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Features
- High ESD withstand Voltage: +/-14kV (Contact) and +/- 18kV (Air) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4

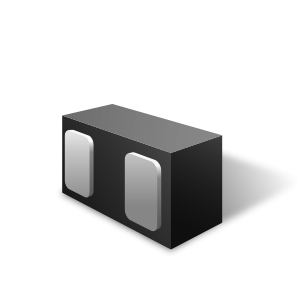

- Ultra-small 0201 package
- Protects one high speed data line
- Working voltage: +/- 24V
- Low capacitance: 0.35pF typical
- Low dynamic resistance: 0.16 Ohms (Typ)
- Low ESD clamping voltage
- Solid-state silicon-avalanche technology
Packaging
- SLP0603P2X3F: 0.6 x 0.3 x 0.25 mm
Order Codes
- RClamp2451ZATFT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, 15,000 pcs.
PB Free/ROHS
Learn More →
| Documents | Release Date | Type |  |
|---|---|---|---|
| RCLAMP2451ZA Datasheet | 2022-06-21 | | |
Applications
- Near Field Communication (NFC) lines
- RF signal lines
- FM Antenna
