Overview

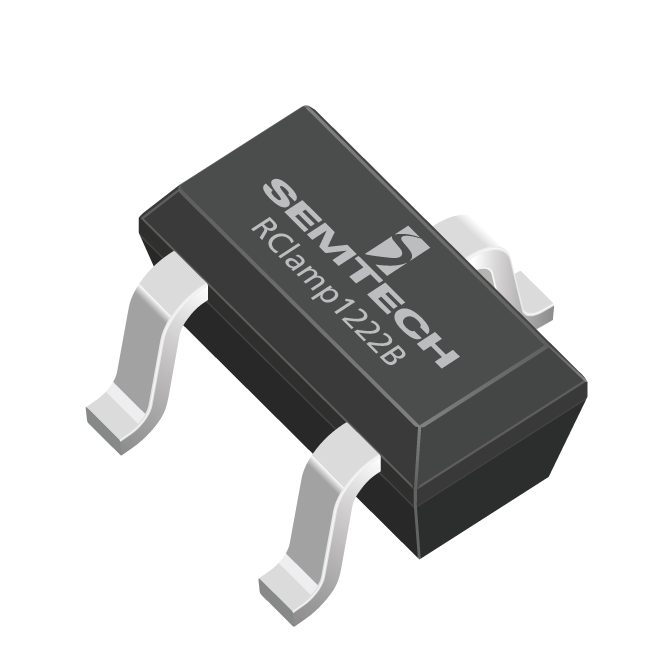

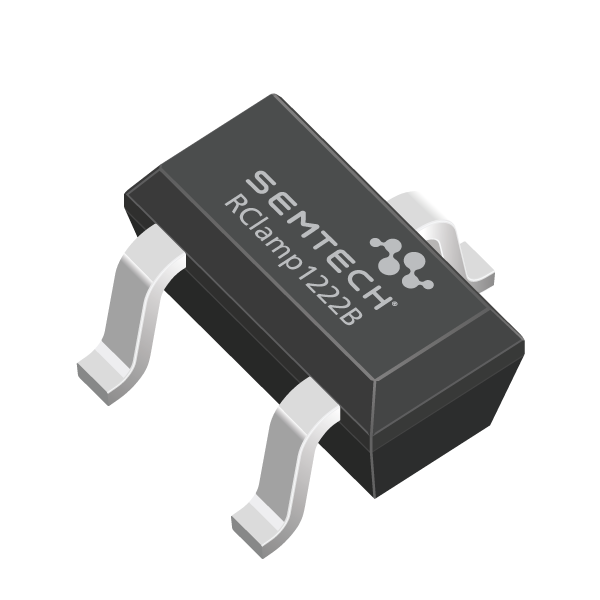

The RailClamp portfolio is a series of ultra-low capacitance transient voltage suppressors (TVS) designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by electrostatic discharge (ESD), cable discharge events (CDE) and electrical fast transients (EFT). The RClamp®1222B features a typical capacitance of only 1.3pF and features protection characteristics highlighted by high surge current capability (10A, tp = 8/20μs), low peak ESD clamping voltage and high ESD withstand voltage (±30kV contact & air per IEC 61000-4-2).

Packaging

  • SC-75(SOT-523)

Order Codes

  • RClamp1222B.C

PB Free/ROHS

Learn More →

Features

  • Transient protection to:
    • IEC 61000-4-2 (ESD): ±30kV (contact), ±30kV (air)
  • Working voltage: 12V
  • Protects two data or power lines
  • Low leakage current: <200nA
  • Low dynamic resistance: 0.23Ω typical
  • Solid-state silicon-avalanche technology

Applications

  • 12V power line protection
  • GPIO
  • RS-232
  • RS-485
  • Analog video
  • Cellular handsets and accessories
