RClamp0584J
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.
Features
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow-Through design
- Protects four I/O lines
- Low capacitance: 0.25pF typical (I/O to I/O)
- Low clamping voltage
- Low operating voltage: 5V
- Solid-state silicon-avalanche technology
- HDMI 1.3 and HDMI 1.4
- USB 3.0
- Digital Visual Interface (DVI)
- DisplayPortTM Interface
- LVDS Interfaces
- PCI Express
- eSATA Interfaces
Applications
Packaging

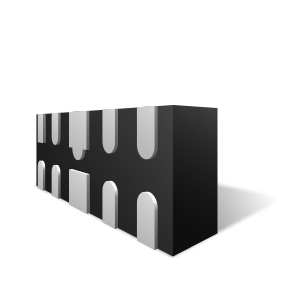

- SLP2710P8 10-pin
Order Codes
- RClamp0584J.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0584J
Part Description
ULTRA LOW CAPACITANCE TVS ARRAYS
# of leads
4
Package Type
SLP2710P8
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
