RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.
- High ESD withstand Voltage: +/-17kV (Contact) and
- +/- 25kV (Air) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC 61000-4-2 Level 4

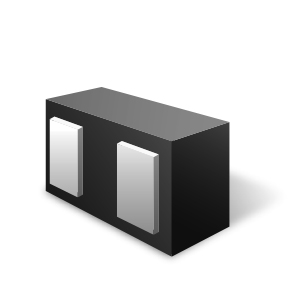

- Ultra-small 0201 package
- Protects one high-speed data line
- Low reverse current: <10nA typical (VR=5V)
- Working voltage: +/- 5V
- Low capacitance: 0.35pF typical
- Dynamic resistance: 0.90 Ohms (Typ)
- Solid-state silicon-avalanche technology
- HDMI 1.3 and HDMI 1.4
- USB 2.0
- LVDS InterfacesFM Antenna
- PCI Express
- eSATA Interfaces
- RClamp0521Z.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
