RailClamps are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
- ESD protection for high-speed data lines to:
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

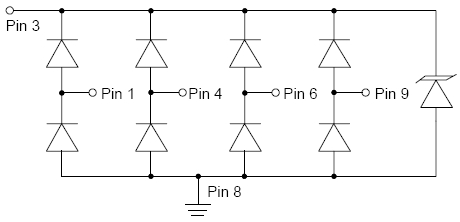

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space

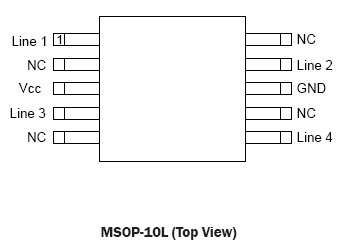

- Protects four I/O lines and one Vcc line
- Low capacitance: 0.7pF typical (Line-to-Line)
- Low clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- High Definition Multi-Media Interface (HDMI)
- Digital Visual Interface (DVI)
- 10/100/1000 Ethernet
- Monitors and Flat Panel Displays
- Notebook Computers
- Set Top Box
- Projection TV

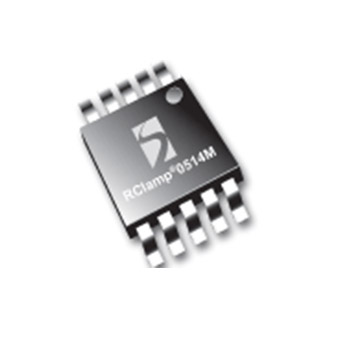

- RClamp0514M.TBT: Package Minimum Tape & Reel Only
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
