RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The RClamp series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (cable discharge events), EFT (electrical fast transients), and lightning.
- Protects eight I/O lines operating up to 1 GHz
- Low operating voltage: 5.0 V
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)

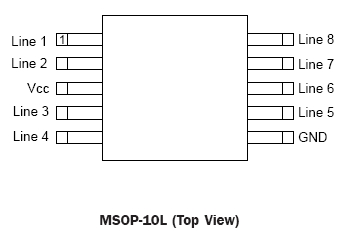

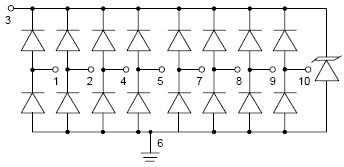

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Low capacitance: 3 pF typical
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Lead-Free matte tin finish
- USB 2.0 power & data line protection
- Video graphics cards
- Monitors and flat-panel displays
- Digital video interface (DVI)
- Notebook computers
- High-definition multimedia interface (HDMI)
- 10/100/1000 Ethernet
- ATM interfaces
- IEEE 1394 FireWire® ports
- 98 pcs. Tape & Reel min. bulk
- 500 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Datasheets & Documentation
Explore a wealth of downloadable resources and datasheets to assist with prototyping and production.
Login or register for mySemtech to gain access to restricted product documentation and to add documents to your Watch List for update alerts
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
Semtech Introduces the HotSwitch® Platform for…New HotSwitch® devices expand Semtech’s robust offering of protection solutions to provide a… READ NOW
Semtech Unveils SurgeSwitch™ System Transient…Semtech’s SurgeSwitch™ product line offers 30% reduced clamping, 80% smaller package size and… READ NOW
Semtech Announces EClamp® Device To Solve…Semtech’s EClamp8052P combines common-mode noise filtering and high-performance, low-capacitance… READ NOW
