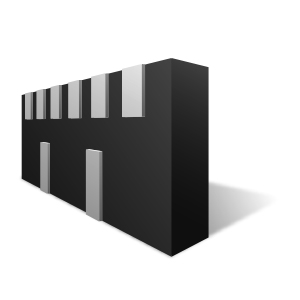

RClamp0506T
RailClamp® TVS diode arrays are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects up to 6-Lines operating at 5V
- Low capacitance (<0.8pF)
- No insertion loss to 2.0GHz
- Low leakage current
- Low clamping voltage
- Innovative package for easy pcb layout
- Solid-state silicon-avalanche technology
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects up to 6-Lines operating at 5V
- Low capacitance (<0.8pF)
- No insertion loss to 2.0GHz
- Low leakage current
- Low clamping voltage
- Innovative package for easy pcb layout
- Solid-state silicon-avalanche technology
Applications
Packaging
- USB 3.0
- HDMI 1.4
- uSD Card Interfaces
- MMC Card Interfaces
- MDDI / mipi Interfaces
Order Codes
- RClamp0506T.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
RCLAMP0506T
Part Description
6-LINE ESD PROTECTION
# of leads
6
Package Type
SLP3313P6T
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
