RailClamps are surge rated diode arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

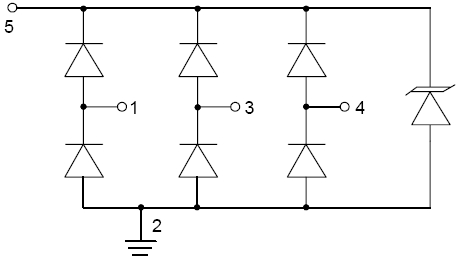

- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects three I/O lines & power line
- Low capacitance (<3pF) for high-speed interfaces
- Low clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- USB OTG interfaces
- SIM Ports
- Video Graphics Cards
- Personal Digital Assistants (PDAs)
- Monitors and Flat Panel Displays
- Portable Electronics
- Microcontroller Input Protection

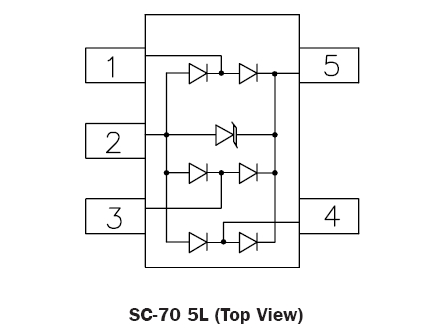

- SC-70 5L
- 3000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
