The RailClamp® series consists of ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
- Transient protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Flow through design for ease of layout for high speed data line application

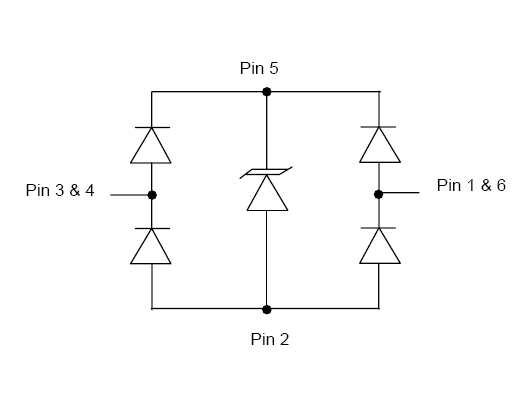

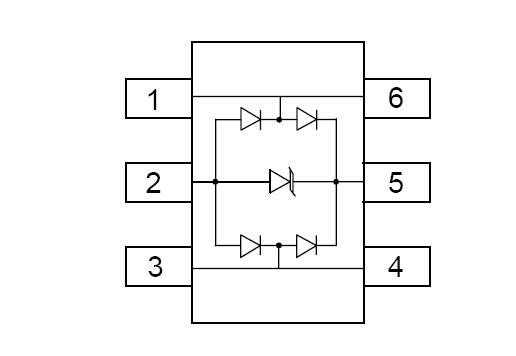

- Protects up to two I/O lines & power line
- Low capacitance (<0.9pF) for high-speed interfaces

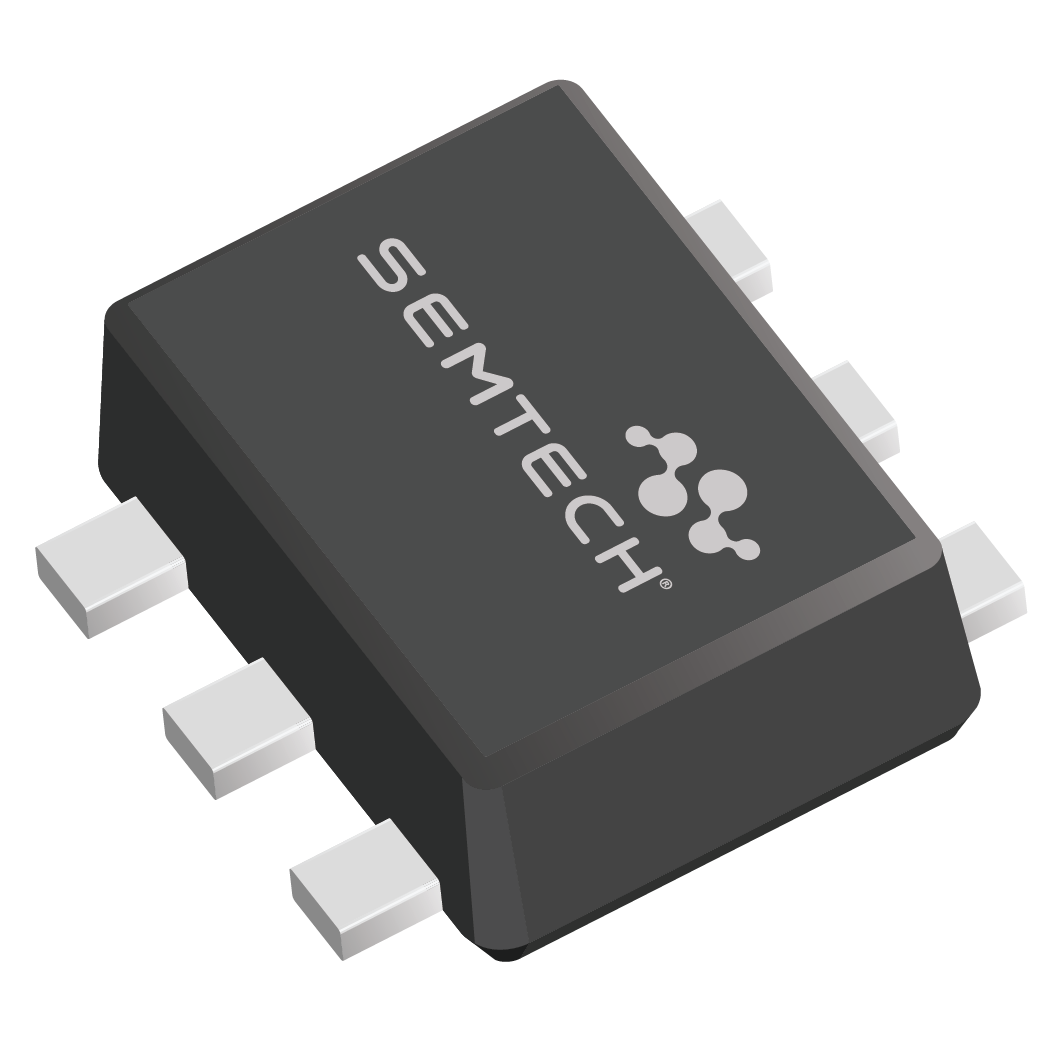

- Ultra-small package requires less than 2.9mm² of PCB area
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- USB 2.0 High Speed
- 10/100/1000 Ethernet Ports
- High-Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Monitors and Flat Panel Displays
- Video Graphics Cards
- IEEE 1394 Firewire Ports High Speed
- 3000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
