A TransClamp® is a low capacitance TVS array designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and Lightning.
- Transient protection for high-speed data lines to
- Bellcore 1089 (Intra-Building) 100A (2/10μs), IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns), IEC 61000-4-5 (Lightning) L5, 95A (8/20μs)
- Low capacitance (12pF line-to-line)
- Low operating voltages (2.5V)
- Low clamping voltage
- Small SLP Package saves board space
- Solid-state technology
- Integrated Magnetics
- Carrier Class Equipment
- Customer Premise Equipment

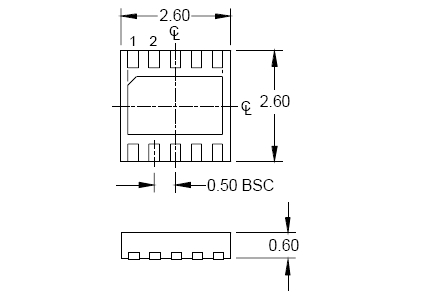

- SLP2626P10 10L
- TClamp2502N.TCT: Lead=Free, RoHS/WEEE Compliant, 3000 pcs, tape and reel
