The LC01-6 transient voltage suppressor is designed to protect components which are connected to high speed telecommunication lines from voltage surges caused by lightning, electrostatic discharge (ESD), and electrical fast transients (EFT).
- 1500 watts peak pulse power (tp = 10/1000 µs)
- Transient protection for high speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 95 A (8/20 µs)
- Telcordia (Bellcore) 1089 (outer-building),
- 100 A (10/1000 µs), 500 A (2/10 µs)
- FCC Part 68, 200 A (10/160 µs)
- ITU K.21, 100 A (5/310 µs)
- ITU K.20, 200 A (5/310 µs)

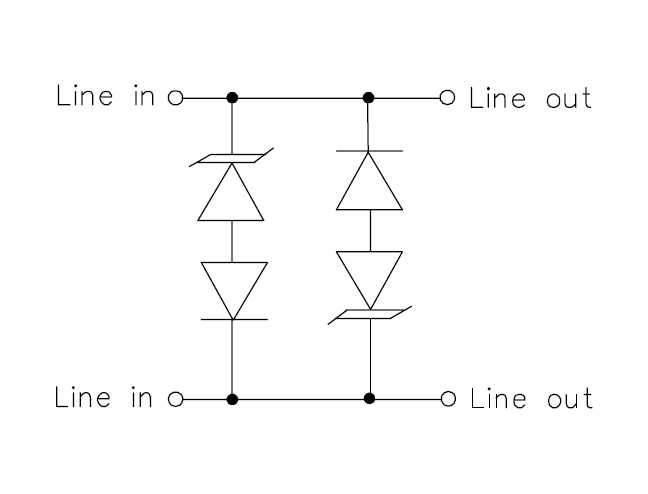

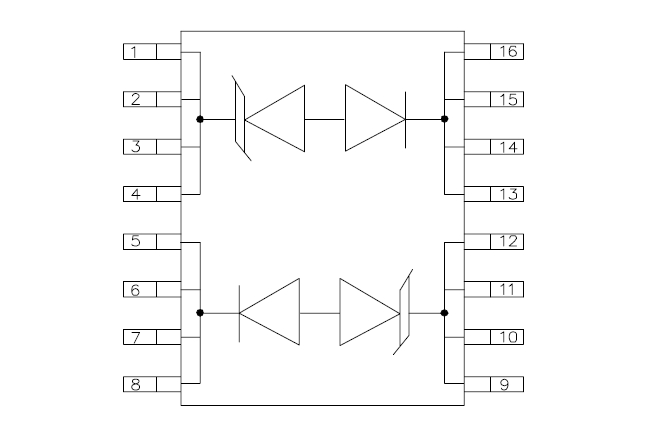

- Differential protection for one tip-and-ring line pair
- Low capacitance for high speed interfaces
- Low operating and clamping voltage
- Integrated structure saves board space and increases reliability
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- T1/E1 line cards
- Base stations
- WAN interfaces
- xDSL interfaces
- CSU/DSU equipment
- 1,000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
