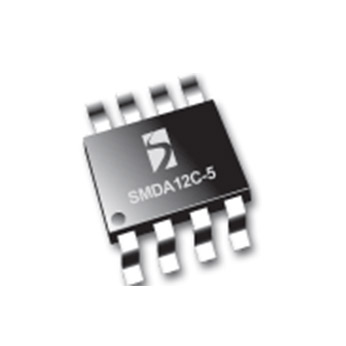

Semtech SMDA12C-5
12 V 5-Line Bidirectional TVS Array
The SMDAxxC-5 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Overview
Features
- Protects 5 I/O lines
- Working voltage: 12 V
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)
- Small SO-8 surface-mount package
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
Applications
- RS-232 and RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- Peripherals
- Set-top boxes
- Serial and parallel ports
Packaging
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 12 A (8/20 µs)
- RS-232 and RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- Peripherals
- Set-top boxes
- Serial and parallel ports
Packaging
SO-8
Order Codes
- SMDA12C-5.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. T&R - Min order req. NCNR; Use SMDA12C-7.TBT instead
