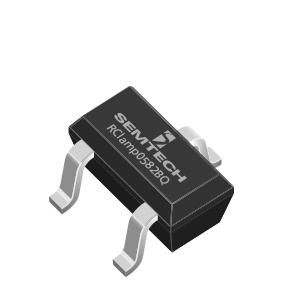

The RailClamp0582BQ is a 5V, dual-line, low-capacitance automotive-grade RailClamp transient voltage suppressor (TVS) optimized for safeguarding high-speed data ports, such as Ethernet and USB, from electrostatic discharge (ESD) threats. The low-capacitance and high ESD robustness of the RClamp0582BQ make it an ideal protection device for safeguarding automotive-based data lines from harsh ESD spikes.
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Qualified to AEC-Q100, Grade 2
- Protects up to two I/O lines
- Low capacitance (<1.2pF)
- High surge capability: 15A (tp=8/20us)
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- Pb-Free, Halogen Free, RoHS/WEEE Compliant
- USB 2.0
- Video Lines
- LVDS Lines
- SC-75 (SOT-523) package
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
