Semtech RClamp0531TQ

Ultra-Low Capacitance 1-Line ESD protection

RailClamp is an ultra low capacitance Transient Voltage Suppressor (TVS) designed to protect high speed data interfaces.

Overview

Features

Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±20kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)
Ultra-small package (1.0 x 0.6 x 0.4mm)
Protects one I/O line
Low capacitance: 0.8pF
Low clamping voltage
Solid-state silicon-avalanche technology
AEC-Q100 Grade 1 qualified

Applications

Cellular Handsets & Accessories
Digital Visual Interface (DVI)
FM Antenna
MDDI Ports
USB Ports
PCI Express
Serial ATA
Automotive Applications

Packaging

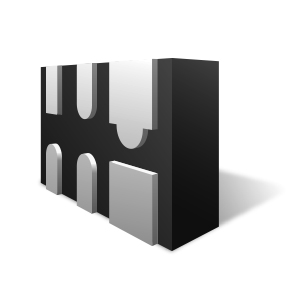

SLP1006P2T

Order Codes

RClamp0531TQTCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant

Datasheets and Resources

Restricted

Datasheets

Rclamp0531TQ
