Overview

uClamp4014P TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They feature large cross-sectional area junctions for conducting high transient currents. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.

Packaging

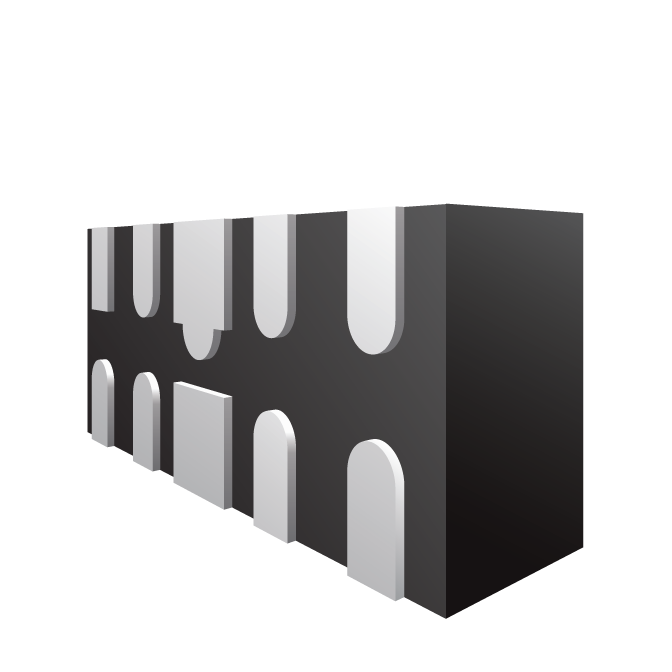

  • DFN 2.5 x 1.0 x 0.60 mm 10-Lead

Order Codes

  • μClamp4014P.TNT

PB Free/ROHS

Learn More →

Features

  • High ESD withstand Voltage: +/-18kV (Contact) per IEC 61000-4-2
  • Protects up to four VBus lines
  • Flow-through package
  • Low reverse current: <10nA typical (VR=40V)
  • Working voltage: +/- 40V
  • Dynamic resistance: 2 Ohms (Typ)
  • Solid-state silicon-avalanche technology

Applications

  • Chip-On-Glass (COG) Panels
  • VBus protection
  • LCD televisions
  • Set top box
  • Industrial equipment
