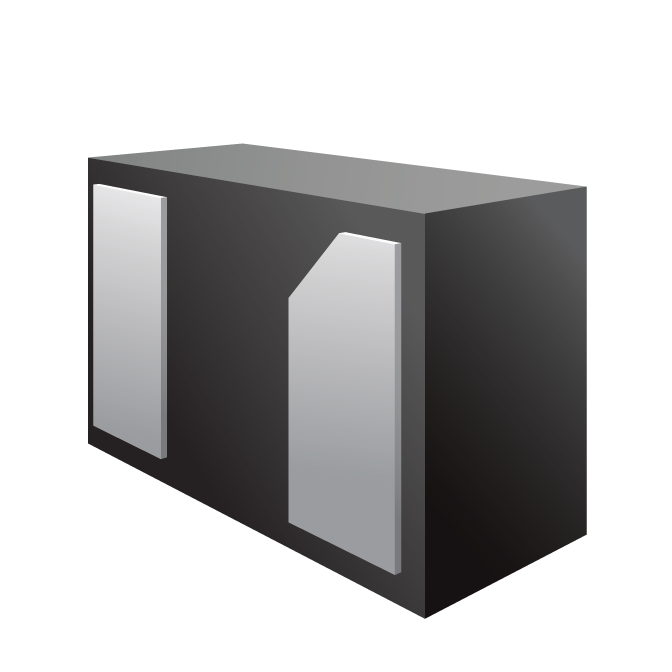

μClamp® series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. μClamp products offer desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation.
- High ESD withstand voltage: +/-20kV (contact) and +/-30kV (air) per IEC 61000-4-2
- Protects one I/O or power line
- Low ESD clamping voltage
- Working voltage: +2.1 V
- Low leakage current
- Solid-state silicon-avalanche technology
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- Cellular handsets & accessories
- OLED displays
- Notebooks & handhelds
- Portable instrumentation
- DFN 1.0 x 0.60 x 0.40 mm 2-Lead – 10,000 pcs
