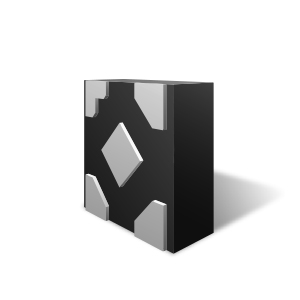

The uClamp0554T offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- High ESD withstand Voltage: +/-15kV (Contact) per IEC 61000-4-2
- Very small PCB area: 0.8mm2
- Protects up to four data lines
- Low reverse current: <3nA typical (VR=5V)
- Working voltage: +/- 5V
- Low capacitance: <7pF (VR=0V)
- Low dynamic resistance: 0.70 Ohms (Typ)
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Keypads, Side Keys, Audio Ports
- SIM Ports
- Digital Lines
- Tablet PC
- Tape and Reel
- uClamp0554T.TNT: Pb-Free, Halogen Free, RoHS/WEEE Compliant
