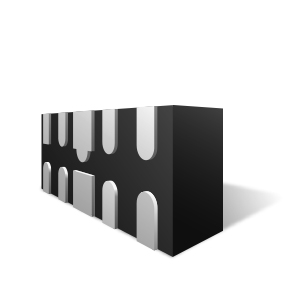

The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace single line devices such as multilayer varistors (MLVs) in space constrained applications such as cell phones, notebook computers, and other portable electronics.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) Cable Discharge Event (CDE)
- Ultra-small package
- Protects four data lines
- Low clamping voltage
- Working voltage: 5V
- Low capacitance (10pF)
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Notebooks & Handhelds
- MP3 Players
- Cordless Phones
- Portable Instrumentation
- Digital Cameras
- uClamp0544P.TCT - Lead-free, RoHS/WEEE compliant
