Not recommended for new designs. See replacement uClamp0541Z
μClamp TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They features large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage,and no device degradation.
- High ESD withstand Voltage: +/-15kV (Air) and +/-8kV (contact) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC61000-4-2 Level 4
- Ultra-small 0201 package
- Protects one data line or power line
- Low leakage current: <10nA (VR=5V)
- Working voltage: +/-5V
- Low dynamic resistance: 0.64Ω (typ)
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Keypads, Side Keys, Audio Ports
- Portable Instrumentation
- Digital Lines
- MP3 Players

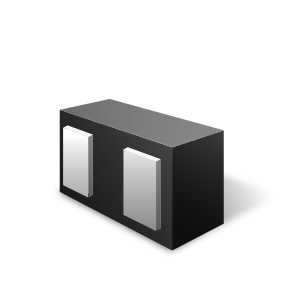

- SLP0603P2X3 package
- Pb-Free, Halogen Free, RoHS/WEEE compliant
- Nominal Dimensions: 0.6 x 0.3 x 0.25 mm
- Packaging: Tape and Reel
- Qty: 15,000
- Reel size: 7”
- Qty: 10,000
- Reel size: 7”
