uClamp0505T
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace single line devices such as multilayer varistors (MLVs) in space constrained applications such as cell phones, notebook computers, and other portable electronics.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)
- Ultra-small package
- Protects five data lines
- Low clamping voltage
- Working voltage: 5V
- Low capacitance (10pF)
- Solid-state silicon-avalanche technology
Applications
Packaging

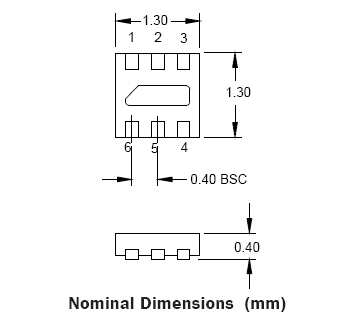

- SLP1313P6T
Order Codes
- uClamp0505T.TCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, 3000 pcs, Tape and Reel
Pb(Lead)-Free/RoHS-Green Info
