STF202
Obsolete - this device is no longer available. Datasheet is for information purposes only.
Features

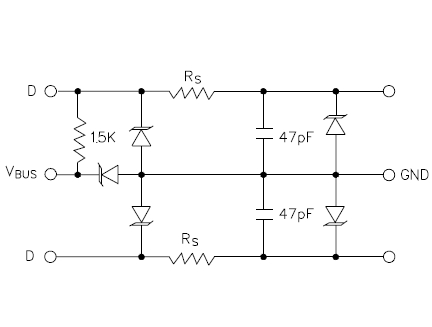

- Bidirectional EMI/RFI filtering and line termination with integrated ESD protection
- Low TVS operating voltage (5.25 V)
- ESD protection for USB power (VBUS) and data lines (D+ and D-) to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- Filtering and termination for two USB data lines
- Different series resistors for impedance matching
- Low leakage current
- Low capacitance
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- USB Hubs
- Portable electronics
- Cellular Handsets
- Modems
- Peripherals
- Servers
- Desktop, notebook, and handheld computers
Applications
Packaging

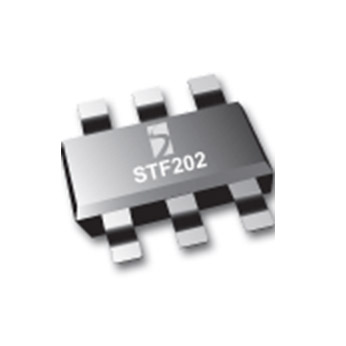

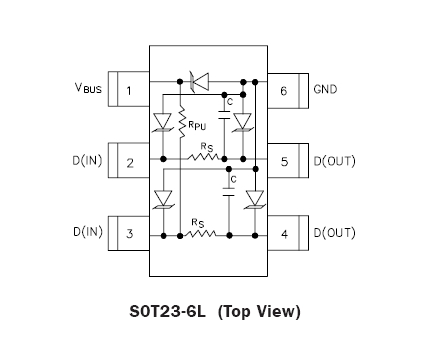

- SOT-23 6L
- 3000 pcs. Tape & Reel
Order Codes
- STF202-22.TCT
- STF202-30.TCT
