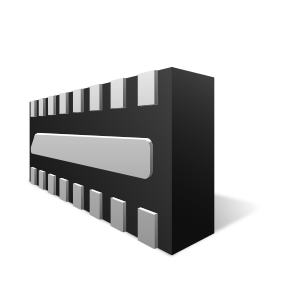

The EClamp® 2508K device is a low pass filter array with integrated TVS diodes. It is designed to suppress
unwanted EMI/RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- Filter performance: 20dB minimum attenuation 800MHz to 2.7GHz
- TVS working voltage: 5V

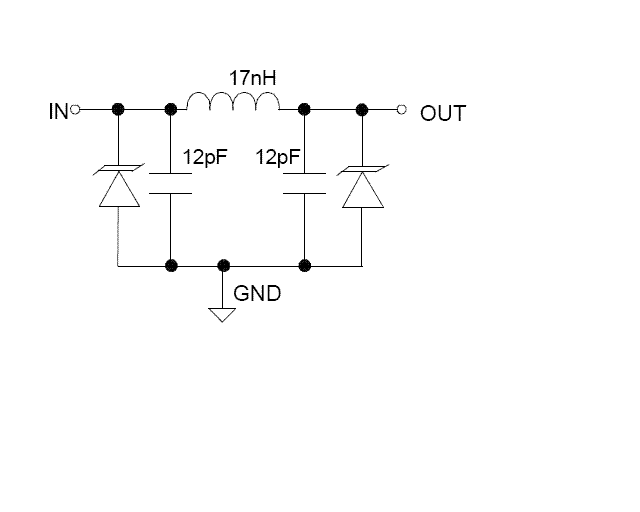

- Inductor: 17nH (Typical)
- Capacitors: 12pF (Typical at VR = 2.5V)
- Protection and filtering for eight lines
- Solid-state technology
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
- EClamp2508K.TCT - 3000 PB-Free, Halogen Free, RoHS/WEEE Compliant
