The EClamp®2455P is combination EMI filter and line termination device with integrated TVS diodes for use on SIM Card interfaces on cellular phones and other portable electronics. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics.
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- TVS working voltage: 5V
- Termination Resistors: 100 Ohms & 47 Ohms
- Capacitance: 20pF (Typical at VR = 0V)

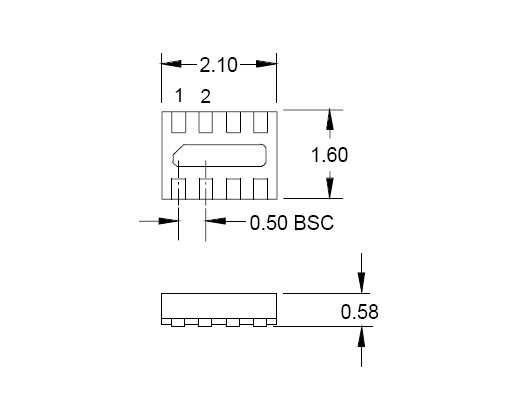

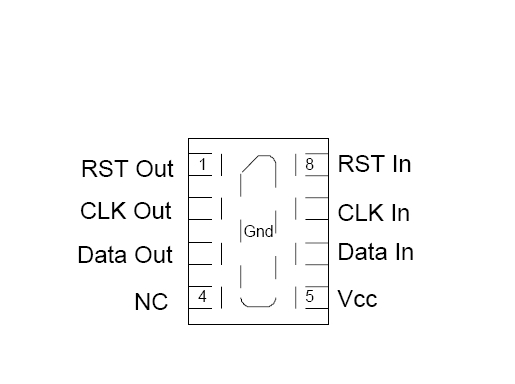

- Protection and filtering for four lines
- Solid-state technology
- SIM Card
- Cell Phone
- PDAs and Smartphones
- EClamp2455P.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
