EClamp2396P

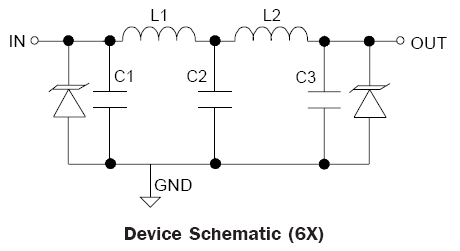

The EClamp®2396P is a (L-C) low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
Features
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4,±15kV (air), ±8kV (contact)
- Filter performance: 30dB minimum attenuation 800MHz to 2.7GHz
- TVS working voltage: 5V
- Inductor: 19nH (Typical)
- Capacitance: 12pF (Typical at VR = 2.5V)
- Protection and filtering for six lines
- Solid-state technology
- Lead-Free, RoHS and WEEE Compliant
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
Applications
Packaging

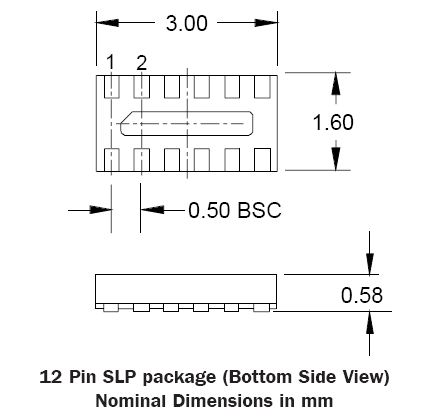

- SLP3016P12
- 3000 pcs.Tape & Reel
Order Codes
- EClamp2396P.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP2396P
Part Description
ESD/EMI PROTECTION FOR COLOR LCD INTERFACES
# of leads
12
Package Type
SLP3016P12
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
