EClamp2378K

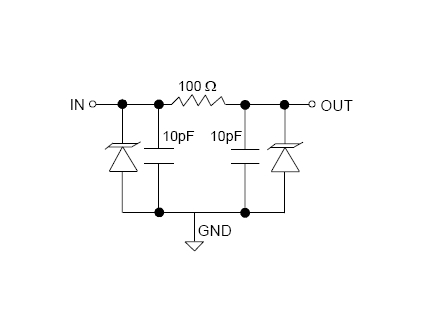

The EClamp®2378K is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
Features
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS working voltage: 5V
- Resistor: 100Ω +/− 15%
- Typical Capacitance: 20pF (VR = 0V)
- Protection and filtering for eight lines
- Solid-state technology
- Lead Free, RoHS/WEEE Compliant
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
Applications
Packaging

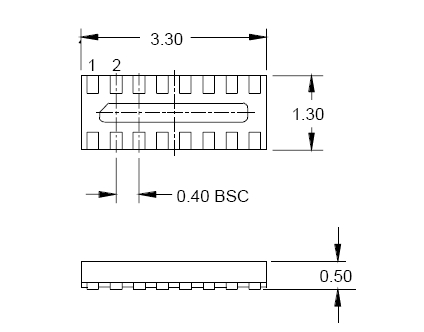

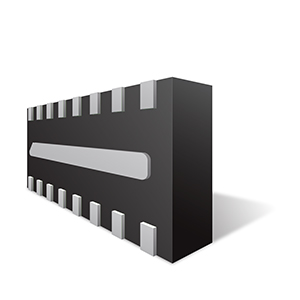

- SLP3313P16
- 3000 pcs, tape and reel
Order Codes
- EClamp2378K.TCT
Pb(Lead)-Free/RoHS-Green Info
