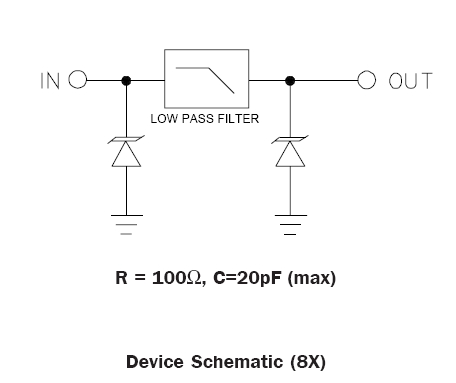

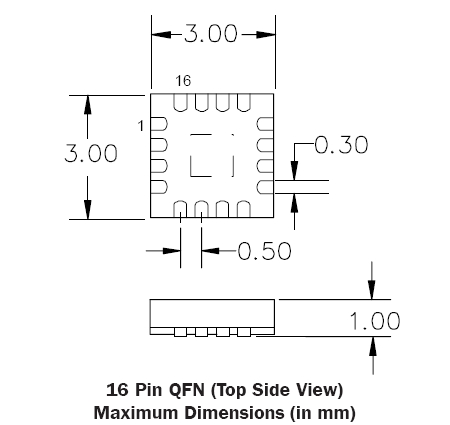

The EClamp®2342N is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI/RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) level 4, ± 15 kV (air), ± 8 kV (contact)
- Filter performance: 30 dB minimum attenuation 1 GHz to 2.5 GHz
- TVS working voltage: 5 V
- Resistor: 100 Ω ± 15%
- Input capacitance: 20 pF (VR = 0 V)
- Protection and filtering for eight lines
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- Color LCD panel protection
- Cell phone CCD camera lines
- Clamshell cell phones
- Personal digital assistants (PDAs)
- 3000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
