The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±30kV (air and contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

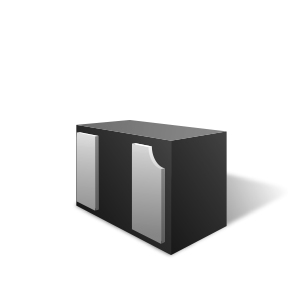

- Ultra-small package (1.0 x 0.6 x 0.5mm)
- Protects one I/O or power line
- Low clamping voltage
- Working voltage: 5V
- Low leakage current
- Solid-state silicon-avalanche technology
- AEC-Q100 Grade 1 Qualified
- Cellular Handsets & Accessories
- Cordless Phones
- Smart Phones
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players
- Automotive Applications
- uClamp0511PQTCT: RoHS and WEEE compliant, 3000 pcs. Tape & Reel
