Semtech NT1000

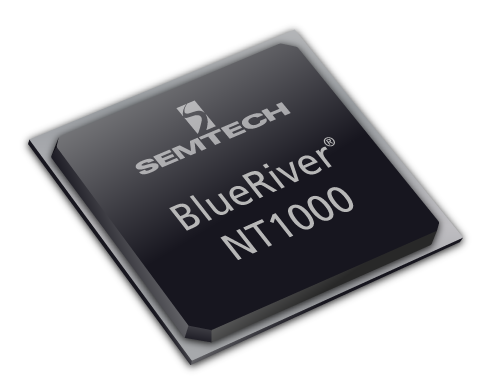

BlueRiver™ NT1000 delivers high-performance switching and distribution of AV content – up to true 4K60. It meets all the requirements of a Pro AV matrix switch or KVM, including the ability to transport HDMI 2.0b signals with HDR, stereo or multichannel audio, and control signals including IR, RS-232, and USB.
Overview
Features
- Extension, IP switching and processing
- All HDMI 2.0 formats including
- 4K/60 8-bit 4:4:4
- 4K/60 10-bit 4:2:2
- High dynamic range content (HDR10)
- Multichannel digital audio embed, de-embed and transport
- 10/100/1G Ethernet (internal GbE switch)
- Bidirectional RS-232, IR and USB 2.0
- Independent, breakaway routing of each signal type (audio, video, data, control) through standard Ethernet switches
- Zero-latency operating mode (0.1 milliseconds)
- Extension to 100 meters on category cable (via 10GBaseT PHY) or 30 kilometers on fiber (via SFP+ module)
- System level HDCP 2.2 / HDCP 1.2 digital content protection support (via external transceiver)
- All 3D video modes including frame packing, top-bottom, field/line alternative, side-by-side and 2D + Depth
Applications
- Matrix switching with infinitely flexible I/O configurations: say goodbye to wasted empty card slots
- Compatible with PCs, Blu-ray, DVD and media players, set-top boxes, AV receivers and gaming consoles
Order Codes
- All HDMI 2.0 formats including
- 4K/60 8-bit 4:4:4
- 4K/60 10-bit 4:2:2
- High dynamic range content (HDR10)
- Multichannel digital audio embed, de-embed and transport
- 10/100/1G Ethernet (internal GbE switch)
- Bidirectional RS-232, IR and USB 2.0
- Matrix switching with infinitely flexible I/O configurations: say goodbye to wasted empty card slots
- Compatible with PCs, Blu-ray, DVD and media players, set-top boxes, AV receivers and gaming consoles
Order Codes
AVBRNT1KCUTRX01-SD Semtech AptoVision BlueRiver NT1000 for Cat-x Support. FPGA not included.
AVBRNT1KFITRX01-SD Semtech AptoVision BlueRiver NT1000 for Fiber & Cat-x Support. FPGA not included.
Diagrams and Specs
Key Specifications
Video Interfaces
- HDMI 2.0 / HDMI 1.4 / DVI 2.0
- Pixel clock up to 594 MHz
Video Resolutions
-All SD, HD, and other resolutions up to
- 4K / 60 Hz / RGB and 4:4:4 8 bit
- 4K / 60 Hz / 4:2:2 10 bit (HDR)
- 4K / 60 Hz / 4:2:0 10 bit (HDR)
Audio Interfaces
-All audio formats supported by HDMI 1.4 and HDMI 2.0, including: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
I2S stereo input and output up to 48 kHz 24-bit
Control Interfaces
- RS-232 (up to 115.2 kbaud)
- Infrared
- USB 2.0 (full device support, up to 480 Mbps) with 3rd party chipset
- Gigabit Ethernet
Transmission Interface
- 10 Gigabit XFI, IEEE 802.3 (RJ45 and SFP+)
Transmission Distance
(Category cable)
- Up to 100 meters on CAT6A or better for 4K / 60 Hz / 4:4:4 video
- Up to 55 meters on CAT6 or better for 4K / 30 Hz / 4:4:4 video
- Cat-X support requires a 3rd party 10GBaseT PHY
Digital Content Protection
-HDCP 1.2 / HDCP 2.2 Compatible
Synchronization Technology
-BlueRiver ACR (Automatic Clock Recovery)
- Multiple displays genlocked to single source
- Zero-frame latency
Multi-Signal Streaming Technology
- Encoding multiple native signals into IP streams
- Decoding IP streams into multiple native signals
- Bidirectional, 10Gbps
Encryption
-AES-128
